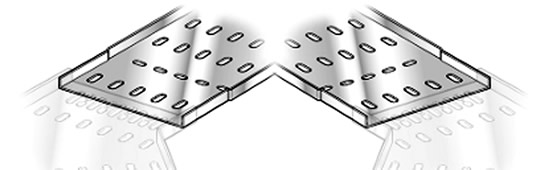

CABLE TRAYS



Light Duty
* Material thickness ranges from 1mm-1.2mmand the side rail is 12mm-19mm depending on the width of the tray. Cable trays are 3m in length.

Medium Duty
* Material thickness is 1.6mm and the side rail is 38mm. Cable trays are 3m in length.

Heavy Duty
* Material thickness is 1.6mm and the side rail is 76mm. Cable trays are 3m in length.
Size
50mm
76mm
101mm
152mm
203mm
228mm
304mm
381mm
457mm
609mm

* Covers are available
for all sizes of cable trais


CABLE TRAY ACCESSORIES
*Accessories are available for all the above sizes.

Horizontal Bend


T-Piece



Riser / Dropper
Fourway


RETURN FLANGE CABLE TRAYS




Medium Duty



 Width Thickness
50mm 1mm
75mm 1mm
100mm 1mm
150mm 1mm
225mm 1mm
300mm 1.2mm
450mm 1.6mm
600mm 1.6mm
750mm 1.6mm
900mm 1.6mm




Heavy Duty



 Width Thickness
50mm 1mm
75mm 1mm
100mm 1mm
150mm 1mm
225mm 1mm
300mm 1.2mm
450mm 1.6mm
600mm 1.6mm
750mm 1.6mm
900mm 1.6mm




Covers



 Width Thickness
50mm 1mm
75mm 1mm
100mm 1mm
150mm 1mm
225mm 1mm
300mm 1.2mm
450mm 1.6mm
600mm 1.6mm
750mm 1.6mm
900mm 1.6mm



RETURN FLANGE ACCESSORIES




Tee Piece


Fourway


Riser / Dropper

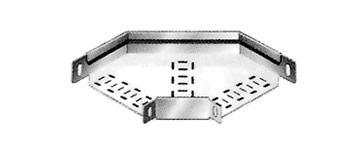

Horizontal 90' Bend


Width Thickness
50mm 1mm
75mm 1mm
100mm 1mm
150mm 1mm
225mm 1mm
300mm 1.2mm
450mm 1.6mm
600mm 1.6mm
750mm 1.6mm
900mm 1.6mm

*Accessories are available for both medium and heavy duty trays. Covers for accessories in the above sizes are also sold.
